DELEM DA-69T折彎機系統 銷售 維修
產品詳情

Delem DA-69T touch  數控折彎機系統銷售維修售后服務 電話:0512-67583820  E-MAIL:  semi.part@139.com

Field option

? Part support control
? X1-X2 angle programming
? Barcode reader interfacing
? Protractor interfacing
? Frame deflection compensation
? Sensor bending & correction interfacing
? Sheet thickness measurement and
  compensation system

Standaard

? Colour LCD display
? 17” TFT, high brightness
? 1280 x 1024 pixels, 16 bit colour
? Full touch screen control (IR-touch)
? Memory capacity 1 GB
? Product and tools memory 256MB
? 3D graphics acceleration
? Standard Windows? networking
? 2nd HSB Modusys bus
? Emergency switch
? Integrated OEM-panel
? USB flash memory drive

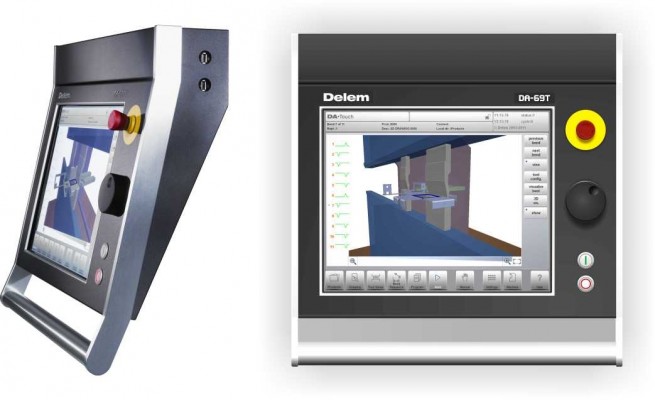

DA-69T

The new generation DA-Touch controls offers an even higher grade of efficiency in programming, operation and control of today's press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity. The touch screen gives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.

The DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.

Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile then ever. The OEM-panel located above the screen, reserved for machine functions and OEM-application switches, is integrated in the design and can be used depending the required application


DA-69T features

  • 3D and 2D graphical touch screen programming mode

  • 3D visualisation in simulation and
    production

  • 17" high resolution colour TFT

  • Full Windows application suite

  • Delem Modusys compatibility (module scalability and adaptivity)

  • USB, peripheral interfacing

  • User specific application support within the controllers multitasking environment

  • Sensor bending & correction interface
